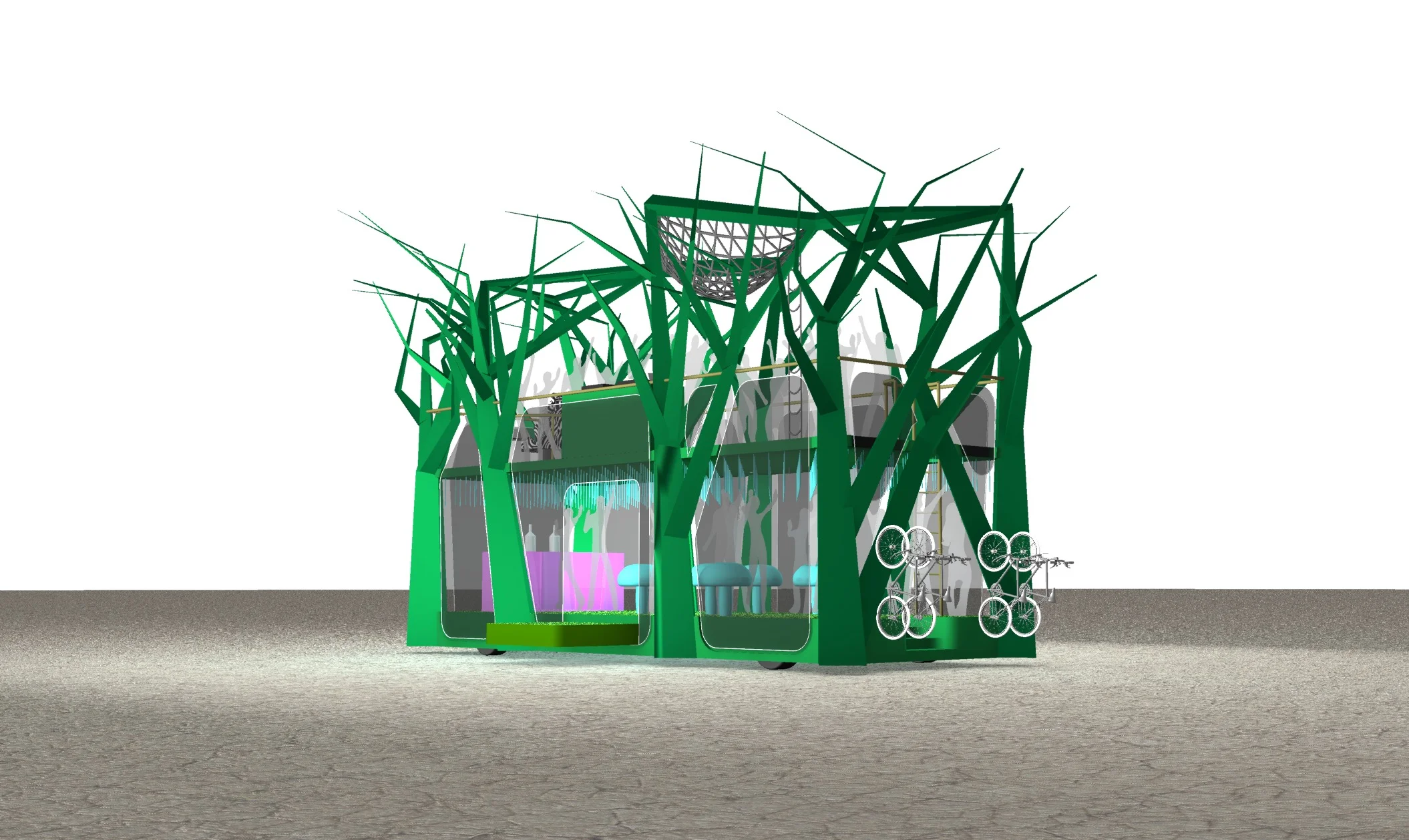

CONCEPT

SPECS

  • Chassis: 2000 Bluebird School Bus

  • Engine: Cummins 6BT 5.9L

  • Overall size (with Trees):
    Height: 30ft (9.1m)
    Width: 15ft (9.1m)
    Length: 40ft (15.25m)

  • Weight: 25,000 lbs

  • Stabilizers: BigFoot Hydraulic Leveling System

  • Generator: Generac 30Kw Diesel

  • Tree Lighting: 30,000 full color LED's individually controllable through MadMapper

  • Lasers: (4) 10w RGB full-color, IP65, semiconductor diode laser system

  • DJ Setup:
    Pioneer DJM-2000NXS 4-Channel Digital Mixer
    Pioneer CDJ-2000NXS Digital DJ Decks | Qty: 2

    Sound System Void Acoustics Sound System by Auralux Systems

    • Amps

      • (4) Bias Q3+

      • (2) Bias Q5

    • Speakers

      • (2) Nexus 6 - 20 discrete proprietary drivers utilizing Virtual Arc technology in a fiberglass composite enclosure

      • (4) Nexus XL - high power 21" transducer sub

      • (4) Stasys Xair - high output double 18" horn loaded sub

      • (1) Venu 12v2 - passive 12" two-way loudspeaker

      • (2) Cyclone 10 - passive 10" two-way loudspeaker

      • (2) Venu 212v2 - reflex loaded duel 12" sub

      • (2) Airten v3 - high output duel 10" loudspeaker for booth monitors

      • (1) Venu 118v2 - high power reflex loaded 18" sub for booth monitor

    • Control

      • ArmoniaPlus System Design

      • Allen & Heath AHM-32 audio matrix processor

      • Araknis Network

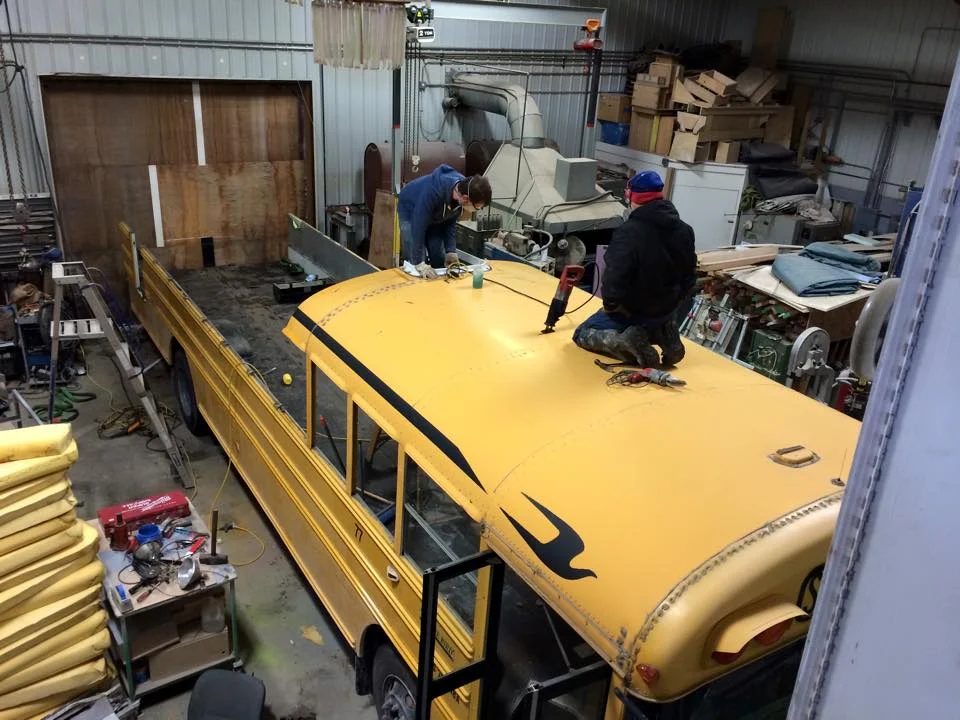

THE BUILDOUT
